GRATE HOUSE MAGNETS：available in various sizes and configurations to suit different processing needs.
Magnestic FILTRATION
Get In Touch
GRATE HOUSING MAGNETS，GRATE MAGNETS IN HOUSING:
designed for removing metal contaminants from materials in dry processing applications.
Grate House Magnets effectively remove ferrous fragments and fines from free-flowing material. They are designed for ferrous metal separation in a wide variety of dry processing applications.
Housings are constructed 304 or 316L stainless steel. Wild stainless steel can be provided on request. Strong magnetic grates inside filter the flow and extract the unwanted ferrous metal.
They are widely used in the food industry and chemical industry. Inside the housing, it can be one layer, two layers or more layers high-intensity magnetic grates in frames.
To initiate cleaning, the operator pulls two handles on the front of the housing, removing the magnetic drawer from the product flow. As the drawer is pulled out, you can wipe off the accumulated metal from the tubes into a catch box for disposal.
The easy-clean version grate house magnets are designed to simplify the cleaning process to encourage frequent and quick removal of collected tramp metal. Cleaning of the magnets is easily accomplished by removing the tube casing of the grates and sliding out each magnet assembly.
THE FEATURE AND CONSTRUCTION
GRATE HOUSE MAGNETIC SEPARATORS
High-Performance Magnets:
- Features powerful Rare-earth neodymium magnets for exceptional magnetic strength and efficient ferrous metal separation.
- Magnetic bars measure 1 inch in diameter, providing a large surface area for capturing contaminants.
- All magnetic bars are waterproof, ensuring reliable performance in wet environments.
Durable Construction:
- Constructed from high-quality Type 304 stainless steel for superior strength, corrosion resistance, and long-lasting durability.
- Type 316 stainless steel is available upon request for even greater resistance to harsh environments.
Easy Cleaning Options:
- Choose between the Easy-clean version for effortless cleaning or the manual cleaning version for customized maintenance.
Polished Finish:
- Well-polished surface for enhanced aesthetics and easy cleaning.
Additional Features:
- Customizable options available to meet specific requirements.
- Adaptable to various industries and applications.
- Cost-effective solution for improving product quality and efficiency.
Why us
REASON TO CHOOSE SINONEO GRATE HOUSING MAGNETS
Quality products
You’re going to love our services! We guarantee 100% quality and the best customer experience. You’ll receive exactly what you’re looking for!
WORLDWIDE SHIPPING
We will help you find the most cost-effective shipping options worldwide that making your shipping experience as friendly and hassle-free as possible.
Custom Design Services
We offer grate house magnets that can be customized to meet your unique needs for any operation!
DELIVERY IN TIME
We can deliver customized grate house magnetic separator within weeks, not months. This will save you both time and money!
Get a free Custom Quote for your BUSINESS now!
Our friendly magnet engineers are here to help you get exactly what you need for retail or industrial purposes, with super high quality & a competitive price.
The Main Type of
PERMANENT GRATE HOUSE magnetIC SEPARATOR
Single row version of round fitting.
Model No. | A | B | C | H |
SMHM-C-S-100 | 100 | 160 | 175 | 200 |
SMHM-C-S-150 | 150 | 210 | 225 | 200 |
SMHM-C-S-200 | 200 | 260 | 275 | 200 |
SMHM-C-S-250 | 250 | 310 | 325 | 220 |
SMHM-C-S-300 | 300 | 360 | 375 | 220 |
SMHM-C-S-350 | 350 | 410 | 425 | 250 |
SMHM-C-S-400 | 400 | 460 | 475 | 250 |
Double row version of round fitting.
Model No. | A | B | C | H |
SMHM-C-D-100 | 100 | 160 | 175 | 220 |
SMHM-C-D-150 | 150 | 210 | 225 | 250 |
SMHM-C-D-200 | 200 | 260 | 275 | 250 |
SMHM-C-D-250 | 250 | 310 | 325 | 300 |
SMHM-C-D-300 | 300 | 360 | 375 | 300 |
SMHM-C-D-350 | 350 | 410 | 425 | 330 |
SMHM-C-D-400 | 400 | 460 | 475 | 330 |
Dimensions are in millimeters. Additional dimensions are available upon request.

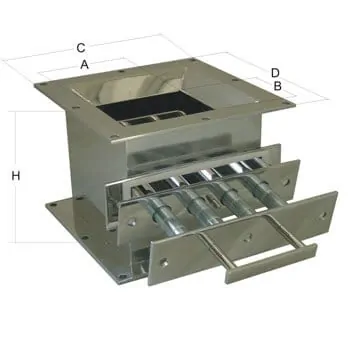

Single row version for square mounting
Part No. | A=B | C=D | H |
SMHM-S-S-100 | 100 | 180 | 200 |
SMHM-S-S-150 | 150 | 230 | 200 |
SMHM-S-S-200 | 200 | 280 | 200 |
SMHM-S-S-250 | 250 | 330 | 220 |
SMHM-S-S-300 | 300 | 380 | 220 |
SMHM-S-S-350 | 350 | 430 | 220 |
SMHM-S-S-400 | 400 | 480 | 220 |
Double row version for square mounting
Part No. | A=B | C=D | H |
SMHM-S-D-100 | 100 | 180 | 200 |
SMHM-S-D-150 | 150 | 230 | 200 |
SMHM-S-D-200 | 200 | 280 | 200 |
SMHM-S-D-250 | 250 | 330 | 220 |
SMHM-S-D-300 | 300 | 380 | 220 |
SMHM-S-D-350 | 350 | 430 | 220 |
SMHM-S-D-400 | 400 | 480 | 220 |
The dimensions are given in millimeters. Other dimensions are available to customize if required.
HAVEN’T FIND WHAT ARE YOU LOOKING FOR?
If you have not yet found what you are looking for then you can simply click “CONTACT US” for expert technical advice.Sinoneo is the professional grate housing magnets, grate house magnets manufacturer and supplier in China. Our magnet engineers will help you get exactly what you need – for your retail or industrial applications – in a short time with high quality at a better price.
Quality you can trust. Our Grate Housing Magnets are built to last, delivering reliable performance. Just like a marketing expert said, ‘The best advertising is a satisfied customer.’
Faq
Read The FAQ’s
What types of materials are suited for grate house magnets?
Grate magnets in housing are best suited for removing ferrous materials such as iron, steel, and other magnetic particles from dry, flowing materials such as powders, granules, and pellets
How do grate house magnets work and what is their effectiveness in removing ferrous materials from a mixture?
Grate housing magnetic separator work by attracting and capturing ferrous materials as they flow through a magnetic grate or grid. The grate is typically made up of a series of magnetic tubes or rods that are arranged in a grid pattern, creating a magnetic field that attracts and captures ferrous materials.
Are they available in different shapes and configurations to fit various applications and spaces?
Sinoneo grate magnetic separator in house are available in different shapes and configurations to fit various applications and spaces. They can be customized to suit specific requirements and can be designed to fit into tight spaces or difficult-to-reach areas.
What is the average lifespan of a grate house magnet?
The lifespan of a grate magnets in housing will depend on its design, materials, and operating conditions. With proper maintenance and cleaning, a grate house magnet can last for many years.
